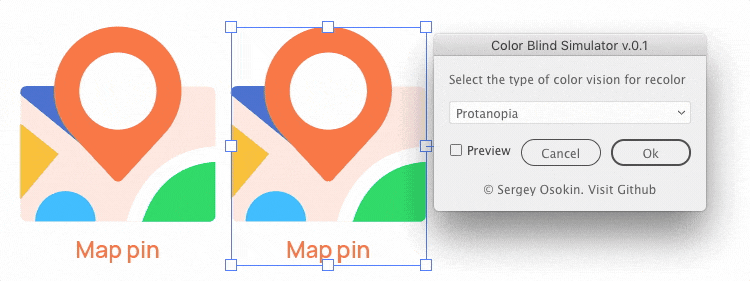

ColorBlindSimulator
Simulates color vision deficiency of 8 types. You can recolor objects or use only a preview. Adobe is limited to viewing two types in the View > Proof Setup menu and cannot apply colors. The script supports: paths, compound paths, text, fills and strokes. You can change the gamma correction in CFG.gamma: 2.2 and activate the default preview CFG.defPreview: true.
Warning
Unfortunately, the copied gradients are one swatch in the Illustrator. Manually break the link by changing the gradient twice with theReverse Gradientbutton.
/*
ColorBlindSimulator.jsx for Adobe Illustrator
Description: Simulates color vision deficiency of 8 types for paths and text.
Adobe is limited to two settings in View > Proof Setup.
You can use only the preview or recolor your artwork
Date: April, 2022
Author: Sergey Osokin, email: hi@sergosokin.ru
Installation: https://github.com/creold/illustrator-scripts#how-to-run-scripts
Release notes:
0.1 Initial version
---
The Color Blind Simulation function is
copyright (c) 2000-2001 by Matthew Wickline and the
Human-Computer Interaction Resource Network ( http://hcirn.com/ ).
It is used with the permission of Matthew Wickline and HCIRN,
and is freely available for non-commercial use. For commercial use, please
contact the Human-Computer Interaction Resource Network ( http://hcirn.com/ )
---
Donate (optional):
If you find this script helpful, you can buy me a coffee
- via Buymeacoffee: https://www.buymeacoffee.com/osokin
- via FanTalks https://fantalks.io/r/sergey
- via DonatePay https://new.donatepay.ru/en/@osokin
- via YooMoney https://yoomoney.ru/to/410011149615582
NOTICE:
Tested with Adobe Illustrator CC 2018-2022 (Mac), 2022 (Win).
This script is provided "as is" without warranty of any kind.
Free to use, not for sale
Released under the MIT license
http://opensource.org/licenses/mit-license.php
Check my other scripts: https://github.com/creold
*/
//@target illustrator
app.preferences.setBooleanPreference('ShowExternalJSXWarning', false); // Fix drag and drop a .jsx file
// Main function
function main() {
var SCRIPT = {
name: 'Color Blind Simulator',
version: 'v.0.1'
},
CFG = {
list: ['Protanomaly', 'Protanopia', 'Deuteranomaly', 'Deuteranopia', // Don't change names
'Tritanomaly', 'Tritanopia', 'Achromatomaly', 'Achromatopsia'],
gamma: 2.2, // Gamma correction
defPreview: false,
dlgOpacity: .96 // UI window opacity. Range 0-1
},
R_BLIND = {
'protan': { 'cpu': 0.735, 'cpv': 0.265, 'am': 1.273463, 'ayi': -0.073894 },
'deutan': { 'cpu': 1.14, 'cpv': -0.14, 'am': 0.968437, 'ayi': 0.003331 },
'tritan': { 'cpu': 0.171, 'cpv': -0.003, 'am': 0.062921, 'ayi': 0.292119 },
};
if (!documents.length) {
alert('Error\nOpen a document and try again');
return;
}
if (selection.length == 0 || selection.typename == 'TextRange') {
alert('Error\nPlease, select one or more paths');
return;
}
var funcBlind = {
'protanopia' : function(e) { return blind(e, R_BLIND.protan, CFG.gamma); },
'protanomaly' : function(e) { return anomylize(e, blind(e, R_BLIND.protan, CFG.gamma)); },
'deuteranopia' : function(e) { return blind(e, R_BLIND.deutan, CFG.gamma); },
'deuteranomaly' : function(e) { return anomylize(e, blind(e, R_BLIND.deutan, CFG.gamma)); },
'tritanopia' : function(e) { return blind(e, R_BLIND.tritan, CFG.gamma); },
'tritanomaly' : function(e) { return anomylize(e, blind(e, R_BLIND.tritan, CFG.gamma)); },
'achromatopsia' : function(e) { return monochrome(e); },
'achromatomaly' : function(e) { return anomylize(e, monochrome(e)); }
};
var items = getItems(selection),
isUndo = false;
// Dialog
var dialog = new Window('dialog', SCRIPT.name + ' ' + SCRIPT.version);
dialog.orientation = 'column';
dialog.alignChildren = ['fill', 'fill'];
dialog.opacity = CFG.dlgOpacity;
// Dropdown
dialog.add('statictext', undefined, 'Select the type of color vision for recolor');
var blindType = dialog.add('dropdownlist', undefined, CFG.list);
blindType.selection = 1; // CFG.list index
var btns = dialog.add('group');
var isPreview = btns.add('checkbox', undefined, 'Preview');
isPreview.value = CFG.defPreview;
// CC 2020 v24.3 has the problem of undoing text changes
if (parseInt(app.version) == 24 && isContainsText(items)) {
dialog.add('statictext', undefined, "Text color preview doesn't work in CC 2020");
isPreview.enabled = false;
}
var cancel = btns.add('button', undefined, 'Cancel', {name: 'cancel'});
var ok = btns.add('button', undefined, 'Ok', {name: 'ok'});
var copyright = dialog.add('statictext', undefined, '\u00A9 Sergey Osokin. Visit Github');
copyright.justify = 'center';
copyright.addEventListener('mousedown', function () {
openURL('https://github.com/creold/');
});
if (isPreview.value) preview();
isPreview.onClick = preview;
blindType.onChange = preview;
cancel.onClick = dialog.close;
ok.onClick = okClick;
dialog.onClose = function () {
try {
if (isUndo) {
undo();
redraw();
isUndo = false;
}
} catch (e) {}
}
function preview() {
if (!isPreview.enabled) return;
try {
if (isPreview.value) {
if (isUndo) undo();
// else isUndo = true;
start();
redraw();
} else if (isUndo) {
undo();
redraw();
isUndo = false;
}
} catch (e) {}
}
function okClick() {
if (isPreview.value && isUndo) undo();
start();
isUndo = false;
dialog.close();
}
function start() {
// Get the key for the function
var type = blindType.selection.toString().toLowerCase();
for (var i = 0, len = items.length; i < len; i++) {
var currItem = items[i];
if (!hasColor(currItem, 'fillColor') && !hasColor(currItem, 'strokeColor'))
continue;
if (isText(currItem))
currItem = currItem.textRange;
if (hasColor(currItem, 'fillColor'))
recolor(currItem, 'fillColor', funcBlind[type]);
if (hasColor(currItem, 'strokeColor'))
recolor(currItem, 'strokeColor', funcBlind[type]);
isUndo = true; // If at least one object has been changed
}
}
dialog.center();
dialog.show();
}
// Get simulated RGB
function blind(rgb, type, gamma) {
if (gamma == undefined) gamma = 2.2;
var wx = 0.312713,
wy = 0.329016,
wz = 0.358271;
var c = {};
c.r = Math.pow(rgb[0] / 255, gamma);
c.g = Math.pow(rgb[1] / 255, gamma);
c.b = Math.pow(rgb[2] / 255, gamma);
rgb2xyz(c);
var sum_xyz = c.x + c.y + c.z;
c.u = 0;
c.v = 0;
if (sum_xyz != 0) {
c.u = c.x / sum_xyz;
c.v = c.y / sum_xyz;
}
// Calculate difference between sim color and neutral color
var nx = wx * c.y / wy,
nz = wz * c.y / wy,
clm, s = {},
d = {};
d.y = 0;
if (c.u < type.cpu) {
clm = (type.cpv - c.v) / (type.cpu - c.u);
} else {
clm = (c.v - type.cpv) / (c.u - type.cpu);
}
var clyi = c.v - c.u * clm;
d.u = (type.ayi - clyi) / (clm - type.am);
d.v = (clm * d.u) + clyi;
s.x = d.u * c.y / d.v;
s.y = c.y;
s.z = (1 - (d.u + d.v)) * c.y / d.v;
xyz2rgb(s);
d.x = nx - s.x;
d.z = nz - s.z;
xyz2rgb(d);
var adj_r = d.r ? ((s.r < 0 ? 0 : 1) - s.r) / d.r : 0,
adj_g = d.g ? ((s.g < 0 ? 0 : 1) - s.g) / d.g : 0,
adj_b = d.b ? ((s.b < 0 ? 0 : 1) - s.b) / d.b : 0;
var adjust = Math.max(((adj_r > 1 || adj_r < 0) ? 0 : adj_r), ((adj_g > 1 || adj_g < 0) ? 0 : adj_g), ((adj_b > 1 || adj_b < 0) ? 0 : adj_b));
// Shift proportionally
s.r = s.r + (adjust * d.r);
s.g = s.g + (adjust * d.g);
s.b = s.b + (adjust * d.b);
// Apply gamma and clamp simulated color
function z(e) {
return 255 * (e <= 0 ? 0 : (e >= 1 ? 1 : Math.pow(e, 1 / gamma)));
}
return [Math.round(z(s.r)), Math.round(z(s.g)), Math.round(z(s.b))];
}
// Convert RGB to XYZ color space
function rgb2xyz(obj) {
obj.x = (0.430574 * obj.r + 0.341550 * obj.g + 0.178325 * obj.b);
obj.y = (0.222015 * obj.r + 0.706655 * obj.g + 0.071330 * obj.b);
obj.z = (0.020183 * obj.r + 0.129553 * obj.g + 0.939180 * obj.b);
return obj;
}
// Convert XYZ to RGB color space
function xyz2rgb(obj) {
obj.r = (3.063218 * obj.x - 1.393325 * obj.y - 0.475802 * obj.z);
obj.g = (-0.969243 * obj.x + 1.875966 * obj.y + 0.041555 * obj.z);
obj.b = (0.067871 * obj.x - 0.228834 * obj.y + 1.069251 * obj.z);
return obj;
}
// If long-wavelength cones (L-cones) is defective
function anomylize(a, b) {
var v = 1.75,
d = v * 1 + 1;
return [(v * b[0] + a[0] * 1) / d, (v * b[1] + a[1] * 1) / d, (v * b[2] + a[2] * 1) / d];
}
// Convert to monochrome
function monochrome(rgb) {
var z = Math.round(rgb[0] * .299 + rgb[1] * .587 + rgb[2] * .114);
return [z, z, z];
}
// Get single items
function getItems(collection) {
var out = [];
for (var i = 0, len = collection.length; i < len; i++) {
var item = collection[i];
if (item.pageItems && item.pageItems.length) {
out = [].concat(out, getItems(item.pageItems));
} else if (/compound/i.test(item.typename) && item.pathItems.length) {
out = [].concat(out, getItems(item.pathItems));
} else if (/pathitem|text/i.test(item.typename)) {
out.push(item);
}
}
return out;
}
// Check if the object has color
function hasColor(item, attr) {
if (!isText(item) && /fill/i.test(attr) && !item.filled )
return false;
if (!isText(item) && /stroke/i.test(attr) && !item.stroked)
return false;
if(isText(item)) item = item.characters[0].characterAttributes;
var type = item[attr].typename;
if (/rgb|cmyk|gray|spot|gradient/i.test(type))
return true;
return false;
}
// Does the array contain TextFrame
function isContainsText(collection) {
for (var i = 0, len = collection.length; i < len; i++) {
if (/text/i.test(collection[i].typename)) return true;
}
return false;
}
// Check the TextFrame
function isText(item) {
return (/text/i.test(item.typename));
}
// Change the original color to the simulated color
function recolor(item, attr, func) {
var isRgb = activeDocument.documentColorSpace == DocumentColorSpace.RGB,
fill = item[attr],
c = {}; // Color
if (/gradient/i.test(fill)) { // Gradient color
for (i = 0, len = fill.gradient.gradientStops.length; i < len; i++) {
var gStop = fill.gradient.gradientStops[i];
c = setBlindColor(gStop.color, func);
gStop.color = c;
c = {};
}
} else { // Solid color
c = setBlindColor(fill, func);
item[attr] = c;
}
// Calc
function setBlindColor(src, func) {
var c = getOriginalColor(src, isRgb),
rgb = [], cmyk = [];
if (isRgb) {
rgb = func([c.red, c.green, c.blue]); // Simulate
} else {
rgb = cmyk2rgb([c.cyan, c.magenta, c.yellow, c.black]);
rgb = func(rgb); // Simulate
cmyk = rgb2cmyk(rgb);
}
return isRgb ? setRGBColor(rgb) : setCMYKColor(cmyk);
}
}
// Get single color
function getOriginalColor(c, isRgb) {
var nc = {}; // New color
switch (c.typename) {
case 'SpotColor':
if (c.tint === 100) {
return getOriginalColor(c.spot.color, isRgb);
} else {
var s = getOriginalColor(c.spot.color, isRgb);
var raw = isRgb ? [s.red, s.green, s.blue] : cmyk2rgb([s.cyan, s.magenta, s.yellow, s.black]);
raw = lerp(raw, [255, 255, 255], 1 - c.tint / 100);
nc = isRgb ? setRGBColor(raw) : setCMYKColor(rgb2cmyk(raw));
return nc;
}
case 'GrayColor':
if (isRgb) {
var raw = gray2rgb(c.gray);
nc = setRGBColor(raw);
} else {
nc = setCMYKColor([0, 0, 0, c.gray]);
}
return nc;
default:
return c;
}
}
// Linear interpolation
function lerp(from, to, value) {
var out = [];
for (var i = 0; i < from.length; i++) {
out.push(from[i] + (to[i] - from[i]) * value);
}
return out;
}
// Convert CMYK to RGB color space
function cmyk2rgb(cmyk) {
return convertColor('CMYK', 'RGB', cmyk);
}
// Convert RGB to CMYK color space
function rgb2cmyk(rgb) {
return convertColor('RGB', 'CMYK', rgb);
}
// Convert GrayScale to RGB color space
function gray2rgb(gray) {
return convertColor('GrayScale', 'RGB', [gray]);
}
// Convert color via native converter
function convertColor(src, dest, srcColor) {
return app.convertSampleColor(ImageColorSpace[src], srcColor, ImageColorSpace[dest], ColorConvertPurpose.defaultpurpose);
}
// Generate solid RGB color
function setRGBColor(rgb) {
var c = new RGBColor();
c.red = rgb[0];
c.green = rgb[1];
c.blue = rgb[2];
return c;
}
// Generate solid CMYK color
function setCMYKColor(cmyk) {
var c = new CMYKColor();
c.cyan = cmyk[0];
c.magenta = cmyk[1];
c.yellow = cmyk[2];
c.black = cmyk[3];
return c;
}
// Open link in browser
function openURL(url) {
var html = new File(Folder.temp.absoluteURI + '/aisLink.html');
html.open('w');
var htmlBody = '<html><head><META HTTP-EQUIV=Refresh CONTENT="0; URL=' + url + '"></head><body> <p></body></html>';
html.write(htmlBody);
html.close();
html.execute();
}
// Run script
try {
main();
} catch (e) {}```
